VEGA VEGASWING 61 Vibrating Level Switch SWING61.DUNBVXURX
VEGA Grieshaber KGModel:SWING61.DUNBVXURX
Midland, TX
Mechanical Float Level Switch
Qty:1
Condition: Used
At a glance
- Product

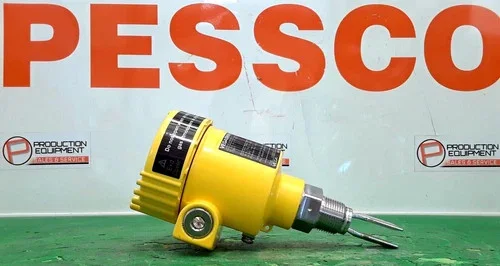

- VEGA VEGASWING 61 Vibrating Level Switch SWING61.DUNBVXURX
- Manufacturer
- VEGA Grieshaber KG
- Model
- SWING61.DUNBVXURX
- Category
- Mechanical Float Level Switch
- Condition
- USED
- Availability
- In stock
- Price or process
- $750.00 USD
- Quantity
- 1
- Lead time
- Not provided
- Location
- Midland, TX
- Fulfillment
- Pickup and shipping available
- Seller
- PESSCO
- Listed on
Key specifications
- Hazardous Area Approval
- FM Class I/II Div 1 Groups A-G, T5@60°C
- Maximum Pressure
- 100bar
- Minimum Medium Density
- 0.5g/cm³
- Power Supply
- 20-253 V AC (50/60 Hz) / 20-72 V DC
- Process Connection
- Threaded (G1 A or NPT equivalent)
- Process Temperature Max
- 150°C
- Process Temperature Min
- -40°C
- Protection Rating
- IP66 / Type 4X/6
- Switching Delay
- 1s
- Switching Output
- Relay (DPDT), max 3A
- Wetted Material
- 316L Stainless Steel
Supporting evidence
No supporting documents or certifications provided.
Description
The VEGA VEGASWING 61 is a compact vibrating level switch designed for reliable point level detection in liquids, utilizing a tuning fork that vibrates at approximately 1200 Hz. When immersed in liquid, the vibration frequency changes, triggering a switch output for applications such as overfill protection, dry run prevention, or pump control in industries like chemical processing, water treatment, pharmaceuticals, and food & beverage. This model features a relay (DPDT) output, hazardous area approvals (e.g., ATEX, FM Class I Div 1), and is suitable for high-pressure and high-temperature environments. Key advantages include maintenance-free operation due to no moving parts, insensitivity to foam, bubbles, or buildup, and quick response times under 0.5 seconds. It supports a wide density range (>0.5 g/cm³) and offers robust 316L stainless steel construction for corrosion resistance. Compared to similar products like those from Endress+Hauser or Rosemount, the VEGASWING 61 excels in compact design and ease of installation without calibration, though it may have limitations in extremely viscous media (>10,000 mPa·s). This unit, manufactured in 2014, appears unused in open-box condition, making it ideal for cost-effective upgrades in industrial automation systems. Benefits include high reliability and IP66/67 protection, while drawbacks could involve higher initial cost for advanced approvals.
