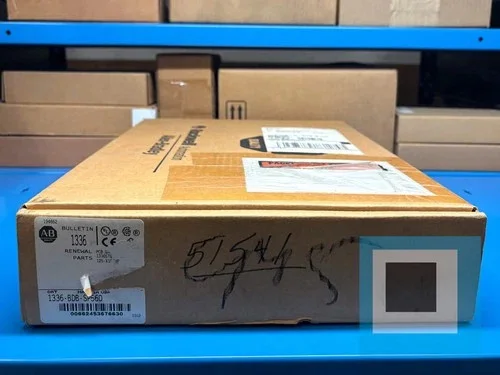

Allen-Bradley 1336-BDB-SP56D Gate Driver Board for 125-150 HP Drives
Allen-BradleyModel:1336-BDB-SP56D
Location unavailable
Variable Frequency Drive
Qty:1
Condition: New
At a glance
- Product
- Allen-Bradley 1336-BDB-SP56D Gate Driver Board for 125-150 HP Drives
- Manufacturer
- Allen-Bradley
- Model
- 1336-BDB-SP56D
- Category
- Variable Frequency Drive
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Listed on
Key specifications
- Board Type
- Gate Driver PCB
- Certifications
- UL, CE
- Compatible Drive Series
- 1336 PLUS
- Compatible Horsepower Maximum
- 150HP
- Compatible Horsepower Minimum
- 125HP
- Operating Temperature Maximum
- 50°C
- Operating Temperature Minimum
- 0°C
- Voltage Rating
- 460V
Supporting evidence
No supporting documents or certifications provided.
Description
The Allen-Bradley 1336-BDB-SP56D is a gate driver board designed as a renewal part for the 1336 PLUS series adjustable frequency AC drives. This component is specifically engineered for high-power applications, supporting drives rated between 125 HP and 150 HP at 460V. It plays a critical role in controlling the power transistors within the drive, ensuring precise modulation of motor speed and torque for industrial machinery such as pumps, fans, and conveyors. Key features include robust construction for reliable operation in harsh environments, compatibility with legacy 1336 systems, and easy installation as a direct replacement part. Advantages over similar products include Allen-Bradley's reputation for durability and integration with Rockwell Automation ecosystems, reducing downtime in maintenance scenarios. However, as a specialized renewal part, it may have limited availability and requires technical expertise for installation. Benefits include extended life for aging drive systems, cost savings compared to full drive replacement, and maintained performance in variable torque applications. Drawbacks could involve obsolescence risks as newer drive technologies emerge. Overall, this board is ideal for industries like manufacturing, oil and gas, and water treatment where legacy equipment reliability is paramount.
