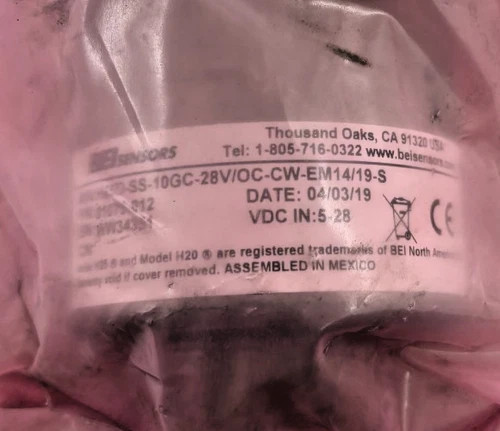

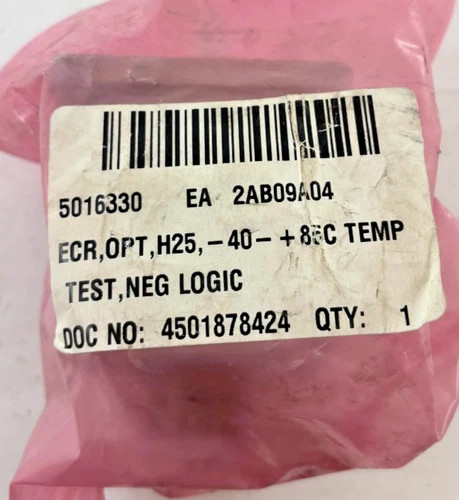

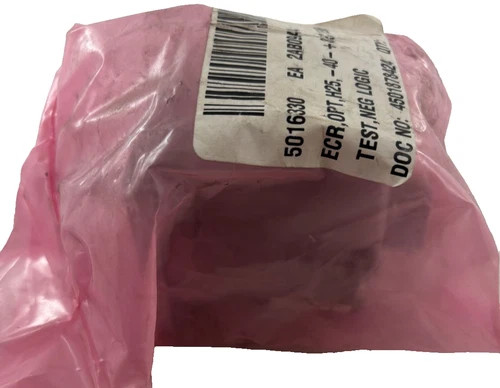

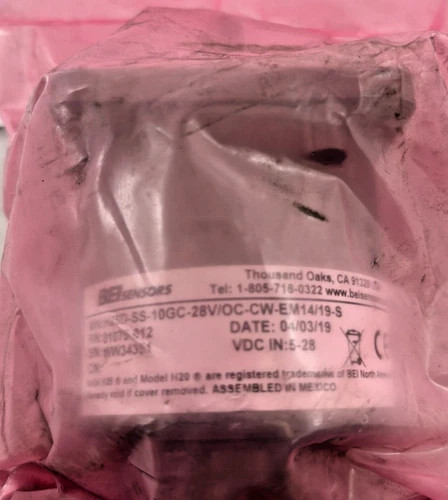

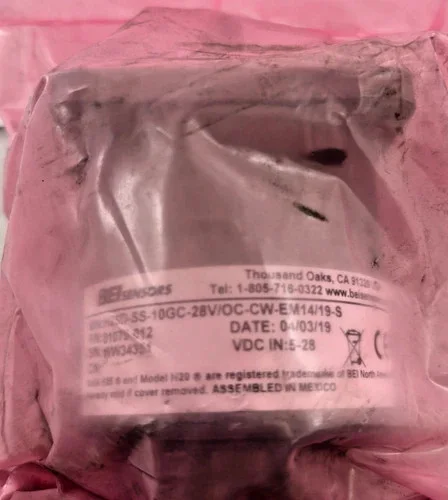

BEI Sensors H25D-SS-10GC-28V/OC-CW-EM14/19-S Absolute Rotary Encoder
BEI SensorsModel:H25D-SS-10GC-28V/OC-CW-EM14/19-S
Location unavailable
Rotating Equipment
Qty:1
Condition: New
At a glance
- Product
- BEI Sensors H25D-SS-10GC-28V/OC-CW-EM14/19-S Absolute Rotary Encoder
- Manufacturer
- BEI Sensors
- Model
- H25D-SS-10GC-28V/OC-CW-EM14/19-S
- Category
- Rotating Equipment
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Motor Control Center
- Listed on
Key specifications
- Connector Type
- M14
- IP Rating
- IP66
- Operating Temperature Maximum
- 85°C
- Operating Temperature Minimum
- -40°C
- Output Type
- Open Collector
- Power Supply Max
- 28VDC
- Power Supply Min
- 5VDC
- Resolution
- 1024°
- Rotation Direction
- Clockwise
- Shock Resistance
- 200g
- Vibration Resistance
- 20
Supporting evidence
No supporting documents or certifications provided.
Description
The BEI Sensors H25D-SS-10GC-28V/OC-CW-EM14/19-S is a robust absolute rotary encoder designed for demanding industrial applications. This single-turn encoder provides precise position feedback using a 10-bit Gray Code output, offering 1024 distinct positions per revolution for accurate angular measurement. It features a stainless steel housing for enhanced durability in harsh environments, with an operating temperature range of -40°C to +85°C, making it suitable for use in automation, robotics, machine tools, and process control systems. Key advantages include high shock and vibration resistance (up to 200g shock and 20g vibration), IP66 sealing for protection against dust and water, and a wide supply voltage range of 5-28 VDC, ensuring compatibility with various control systems. The open collector output and clockwise rotation sensing provide reliable signal integrity, while the M14 connector facilitates easy integration. Compared to similar encoders like those from Dynapar or Omron, the H25D series excels in ruggedness and longevity, reducing downtime in heavy-duty settings. However, its single-turn design limits it to applications not requiring multi-turn tracking, and the higher cost reflects its premium build quality. Overall, it's an excellent choice for reliable, maintenance-free operation in industrial sensor networks.
