Natco 32 Tube SS BTEX Unit 750,000 BTU

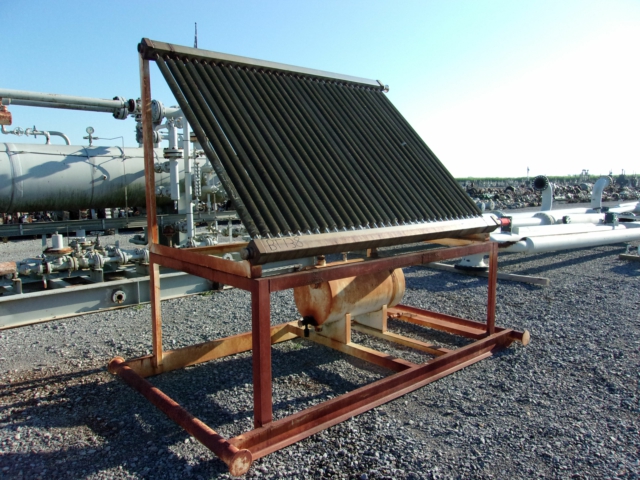

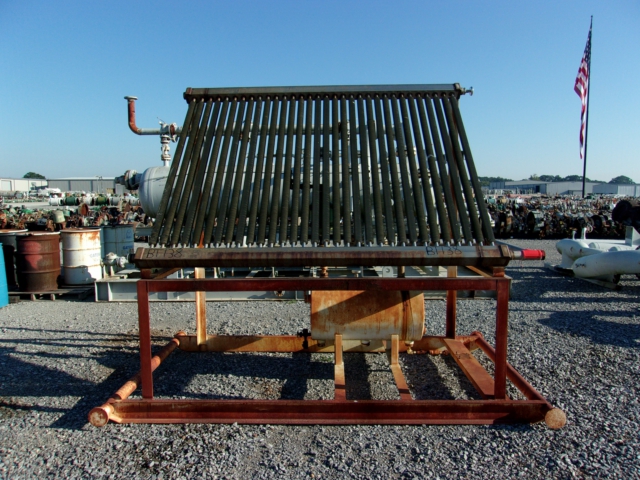

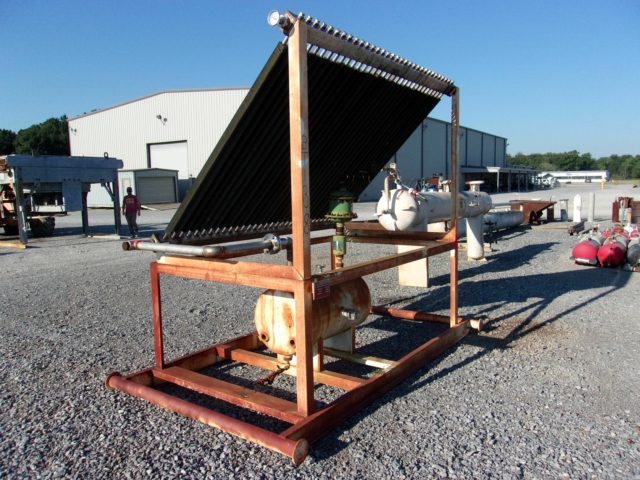

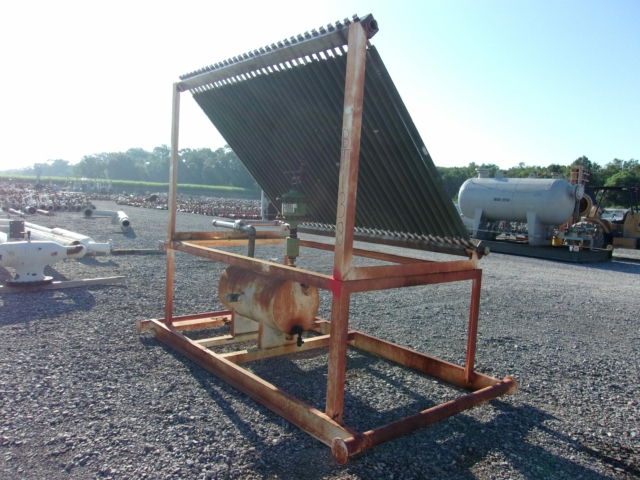

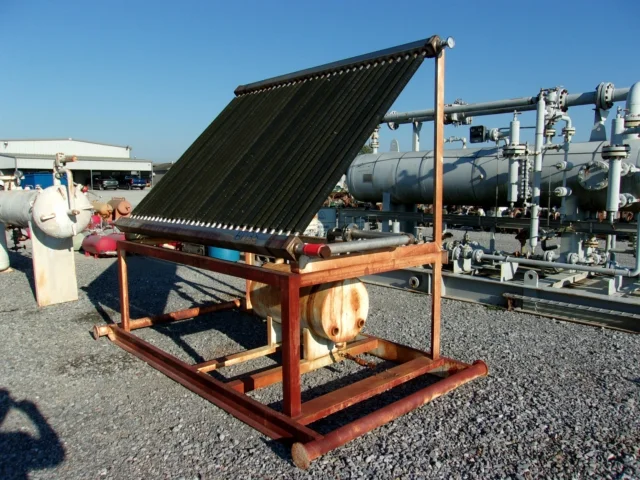

The Natco 32 Tube SS BTEX Unit is a specialized emissions control system designed for glycol dehydration processes in the oil and gas industry. With a capacity of 750,000 BTU/hr, this unit effectively condenses and recovers volatile organic compounds (VOCs) such as Benzene, Toluene, Ethylbenzene, and Xylene (BTEX) from glycol regenerator vapors, helping to comply with environmental regulations and reduce emissions. Constructed with stainless steel tubes for corrosion resistance, it features an air-cooled condenser design with 32 inclined tubes mounted on a sturdy skid frame, allowing for passive cooling via natural convection. Key applications include natural gas processing plants, well sites, and dehydration towers where glycol is used to remove water from gas streams. Benefits include low operational costs due to no power requirements for cooling, durability in harsh outdoor environments, and efficient BTEX recovery to minimize flaring or venting. Drawbacks may include dependency on ambient conditions for cooling efficiency and potential need for periodic cleaning in dusty environments. Compared to powered fan coolers, this unit offers simpler maintenance and lower energy use, though it may have lower throughput in extreme climates. The non-code design suits low-pressure applications, and its compact skid-mounted setup facilitates easy installation and transport.
