Ferraz Shawmut Protistor Fuse L301471 A070URD73LI0525 525A 700VAC
Gould ShawmutModel:A070URD73LI0525
Location unavailable
Surge Protector
Qty:1
Condition: New
At a glance
- Product
- Ferraz Shawmut Protistor Fuse L301471 A070URD73LI0525 525A 700VAC
- Manufacturer
- Gould Shawmut
- Model
- A070URD73LI0525
- Category
- Surge Protector
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Seller
- Controlview Automation
- Listed on
Key specifications
- Breaking Capacity
- 200kA
- Current Rating
- 525A
- Fuse Size
- 73mm
- I²t Rating (Pre-Arcing)
- 65000A²s
- Operating Class
- aR (Partial Range)
- Temperature Max
- 80°F
- Temperature Min
- -40°F
- Voltage Rating
- 700V
Supporting evidence
No supporting documents or certifications provided.
Description

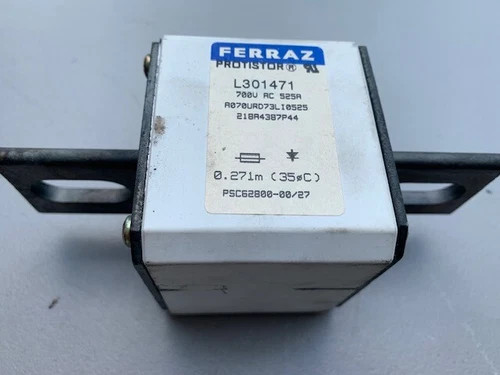

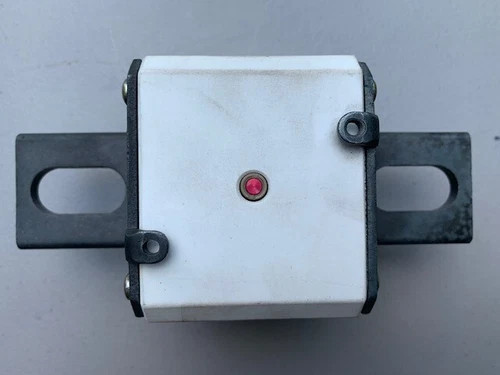

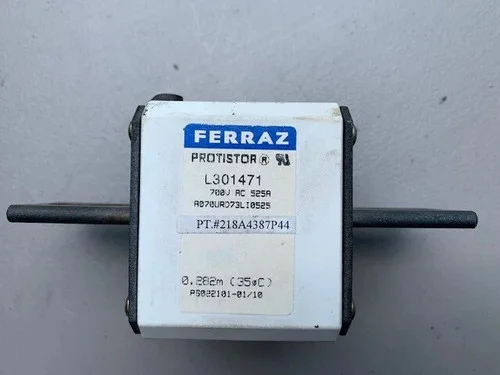

The Ferraz Shawmut Protistor Fuse L301471 (model A070URD73LI0525) is a high-performance semiconductor protection fuse designed for ultra-rapid current limiting in industrial applications. Rated at 525 amps and 700 VAC, this fuse excels in protecting power semiconductors, such as diodes, thyristors, and IGBTs, from overcurrent and short-circuit faults in demanding environments like variable speed drives, UPS systems, and renewable energy inverters. Its square body design with blade terminals ensures easy installation and reliable performance. Key features include high breaking capacity up to 200 kA, low I²t values for minimal energy let-through, and compliance with IEC 60269-4 standards. Advantages over similar products include faster response times, reducing equipment damage, and robust construction for high cycling loads. Drawbacks may include higher cost compared to standard fuses and the need for precise matching to application ratings. This new condition unit offers superior protection in high-power electronics, enhancing system reliability and safety. Based on label details, it appears manufactured around 2018, with no visible wear or attachments.
