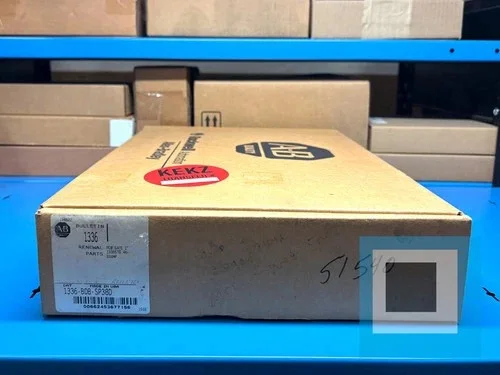

Allen-Bradley 1336-BDB-SP38D Gate Drive PCB for 200HP 460V Drives
Allen-BradleyModel:1336-BDB-SP38D
Location unavailable
Variable Frequency Drive
Qty:1
Condition: New
At a glance
- Product
- Allen-Bradley 1336-BDB-SP38D Gate Drive PCB for 200HP 460V Drives
- Manufacturer
- Allen-Bradley
- Model
- 1336-BDB-SP38D
- Category
- Variable Frequency Drive
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Location unavailable
- Fulfillment
- Shipping only
- Listed on
Key specifications
- Board Type
- Gate Driver Board
- Compatible Drive Series
- 1336 PLUS and 1336STG
- Frame Size Compatibility
- G Frame (200HP)
- Horsepower Rating
- 200HP
- Operating Temperature Max
- 50°F
- Operating Temperature Min
- 0°F
- Voltage Rating
- 460V
Supporting evidence
No supporting documents or certifications provided.
Description
The Allen-Bradley 1336-BDB-SP38D is a base driver board designed for the 1336 PLUS series adjustable frequency AC drives. This renewal part serves as a critical component in controlling high-power motors, specifically rated for 200HP at 460V. It facilitates precise gate drive signals to power transistors, ensuring efficient motor speed and torque control in industrial applications such as pumps, fans, conveyors, and manufacturing machinery. Key features include robust construction for harsh environments, compatibility with 1336STG frames, and easy integration for maintenance or upgrades. Advantages over similar products include Allen-Bradley's reputation for reliability, reducing downtime in automation systems, and support for legacy 1336 drives, extending equipment life. Drawbacks may include limited availability as a renewal part and the need for professional installation to avoid compatibility issues. Overall, this board enhances drive performance with improved signal integrity and fault protection, making it ideal for heavy-duty industrial settings where energy efficiency and operational continuity are paramount.
