Square D HVL/cc 15kV Load Current Interrupter Switchgear Lineup for 28MVA Power Generation
Square DModel:17-3153188-009 (Switchgear); 17-3153192-004 (Breaker FO)
Longmont, Colorado
Electrical Equipment
Qty:1
Condition: New
At a glance
- Product
- Square D HVL/cc 15kV Load Current Interrupter Switchgear Lineup for 28MVA Power Generation
- Manufacturer
- Square D
- Model
- 17-3153188-009 (Switchgear); 17-3153192-004 (Breaker FO)
- Category
- Electrical Equipment
- Condition
- NEW
- Availability
- In stock
- Price or process
- Request price
- Quantity
- 1
- Lead time
- Not provided
- Location
- Longmont, Colorado
- Fulfillment
- Pickup and shipping available
- Seller
- E&M Equipment
- Listed on
Key specifications
- Alternator Apparent Power
- 28kVA
- Basic Impulse Level (BIL)
- 95kV
- Continuous Current Rating
- 1200A
- Enclosure Rating
- NEMA 3R
- Frequency
- 60Hz
- Interrupt Rating
- 1200kA
- Number of Phases
- 3
- Short Circuit Rating
- 25kAIC
- Short Circuit Withstand
- 25kA
- Surge Current Rating
- 40A
- Switch Rating Current
- 600A
- Voltage Rating
- 15V
- Withstand Rating
- 36A
Supporting evidence
No supporting documents or certifications provided.
Description

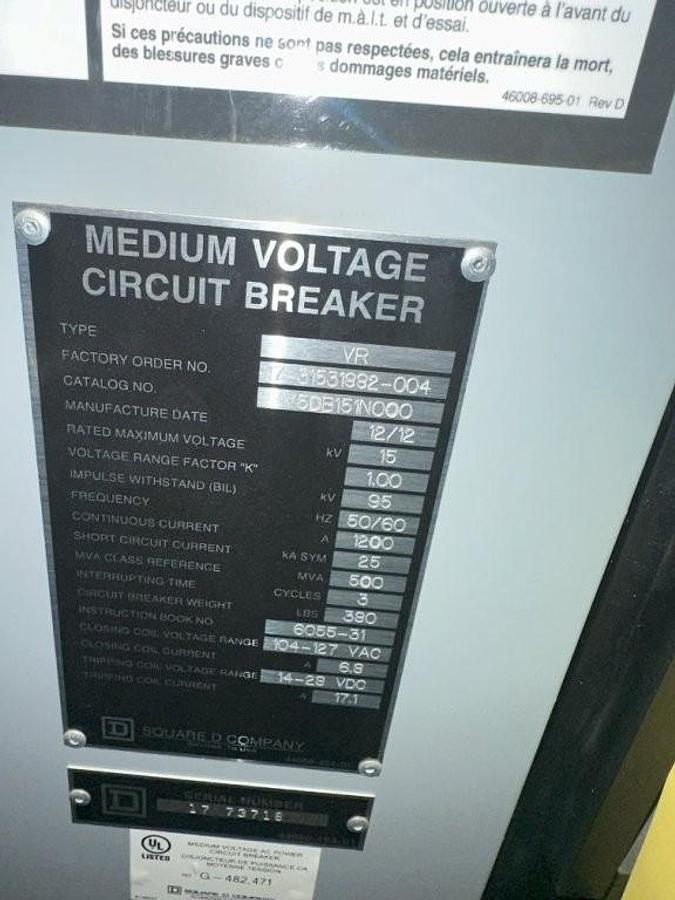

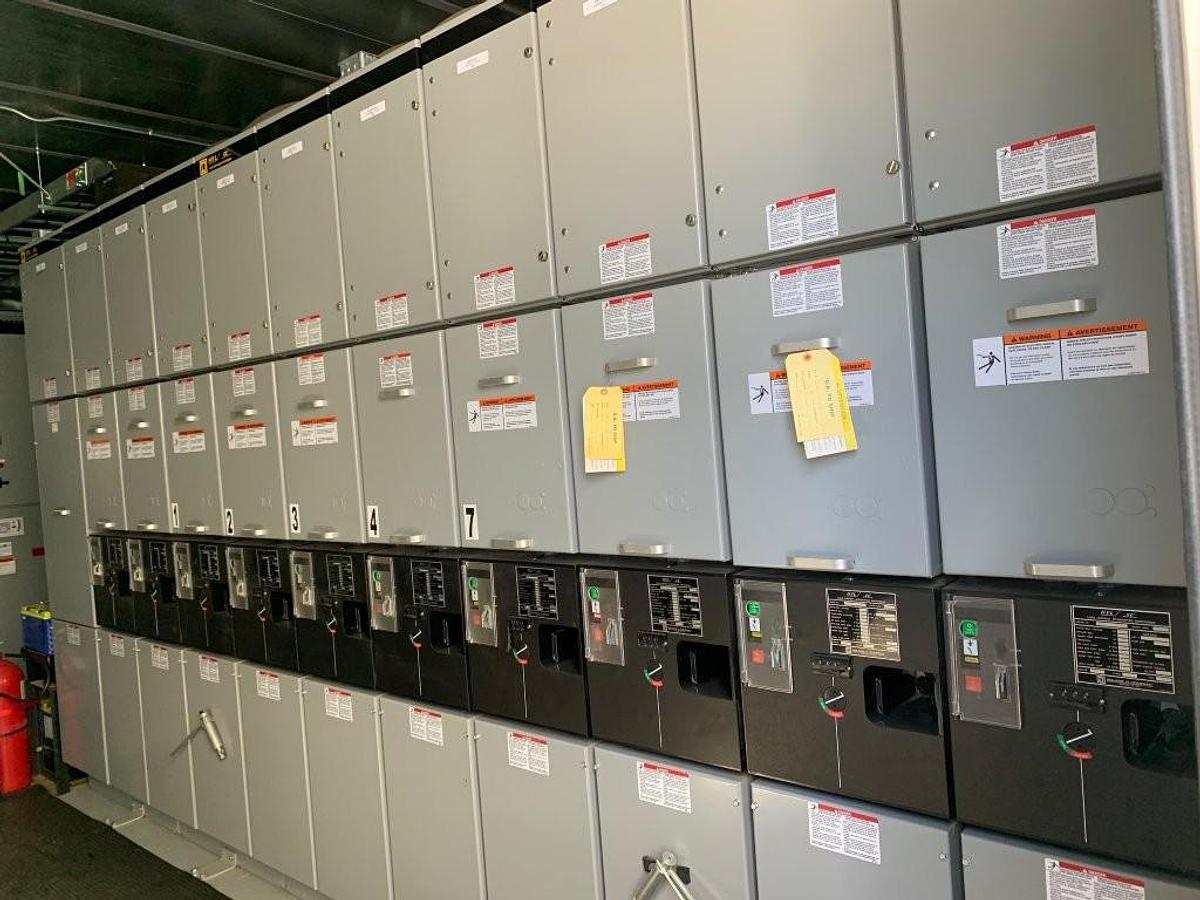

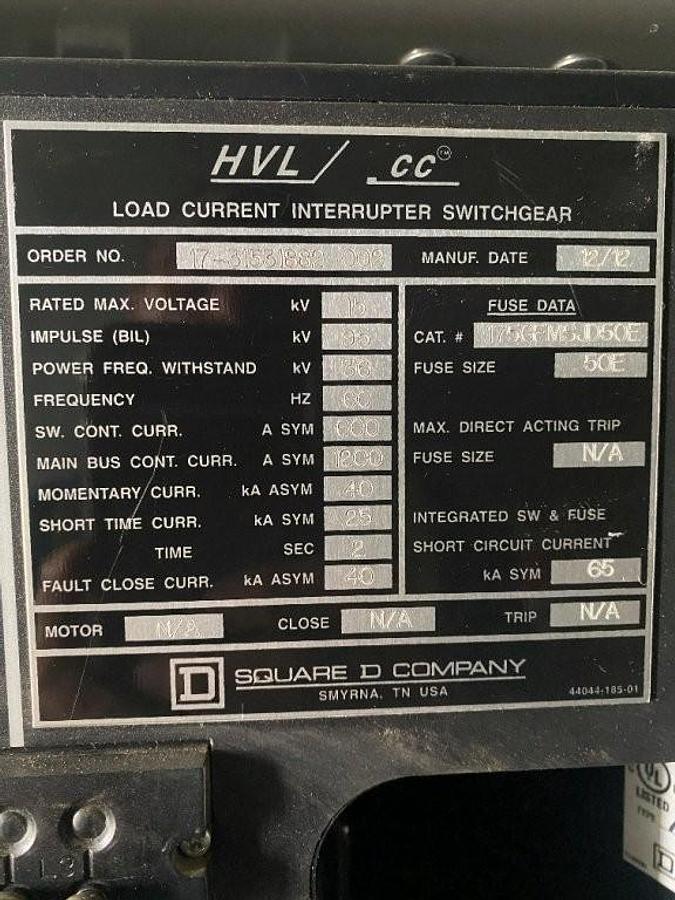

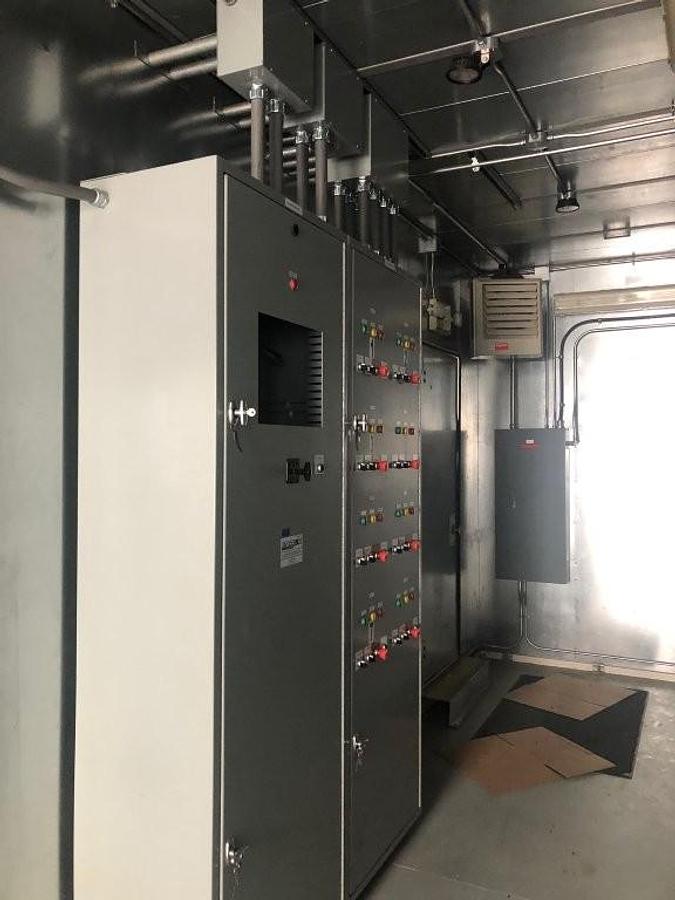

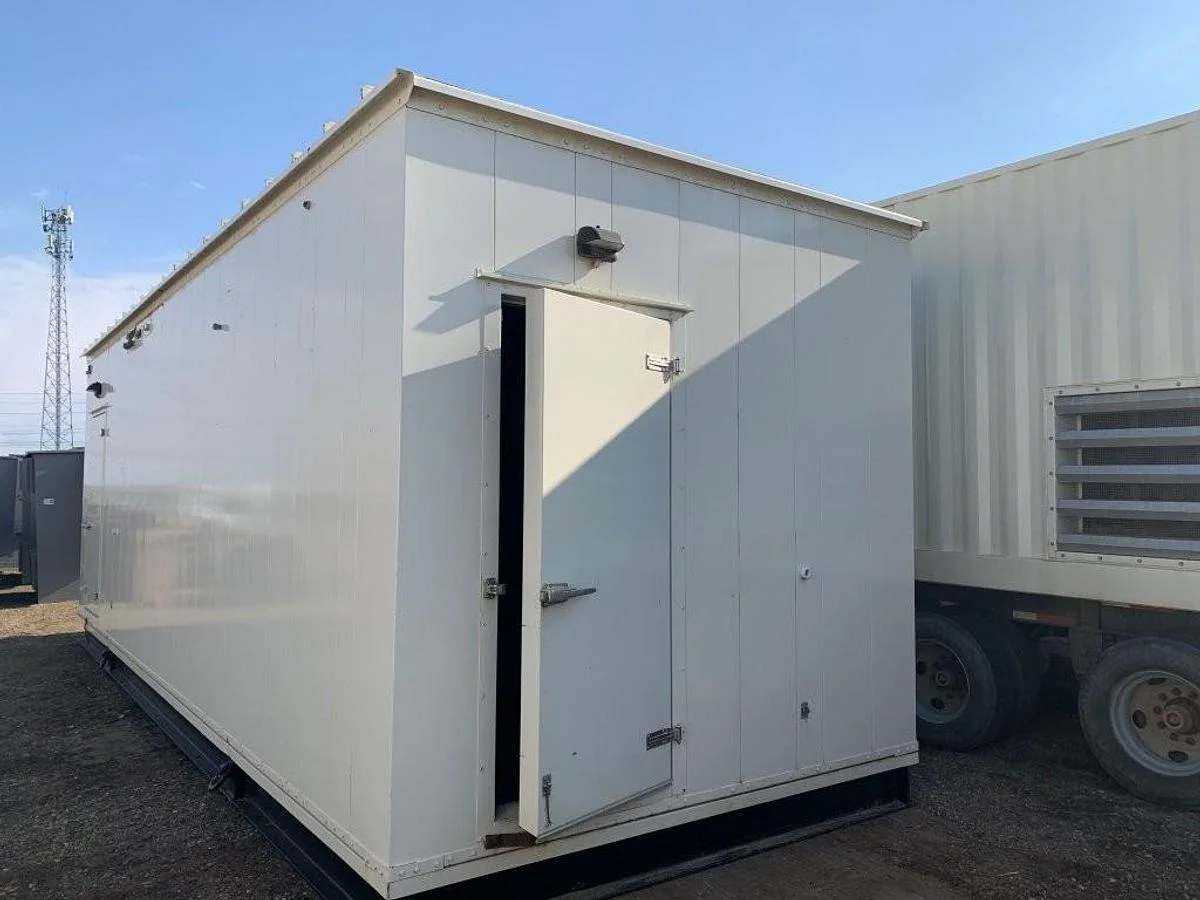

The Square D HVL/cc 15kV load current interrupter switchgear is a robust, containerized metal-clad assembly manufactured in 2012 for automatic paralleling and load sharing in 28MVA prime power generation systems. Featuring a 1200A main bus, 600A interrupter switches, and drawout 1200A vacuum circuit breakers (catalog 5DTE15N000), it supports up to 8 generators with auxiliary relays, ESCO controls, and integrated fusing. Housed in a NEMA 3R weatherproof trailer-mounted enclosure (wind-rated 125 MPH, roof/floor load capacities), it includes HVAC, lighting, and fire suppression readiness. Key specs: 25kA short-time rating (2s), 40kA momentary/fault-close, 95kV BIL. Benefits include low-maintenance vacuum tech, high reliability for oil/gas/remote sites, easy mobility. Advantages over competitors like ABB or Siemens: Cost-effective Schneider quality, proven fusing integration, generator-specific paralleling. Condition: Excellent, new surplus (0 hours), clean interiors, no visible damage.
