Maloney Steel 3.0 MMBTU Salt Bath Heater
Maloney Steel Ltd.Model:9788-B
Neilburg, SK
Heaters & Boilers
Qty:1
Condition: Used
At a glance
- Product
- Maloney Steel 3.0 MMBTU Salt Bath Heater
- Manufacturer
- Maloney Steel Ltd.
- Model
- 9788-B
- Category
- Heaters & Boilers
- Condition
- USED
- Availability
- In stock
- Price or process
- Make an offer
- Quantity
- 1
- Lead time
- Not provided
- Location
- Neilburg, SK
- Fulfillment
- Pickup and shipping available
- Seller
- Triad Equipment
- Listed on

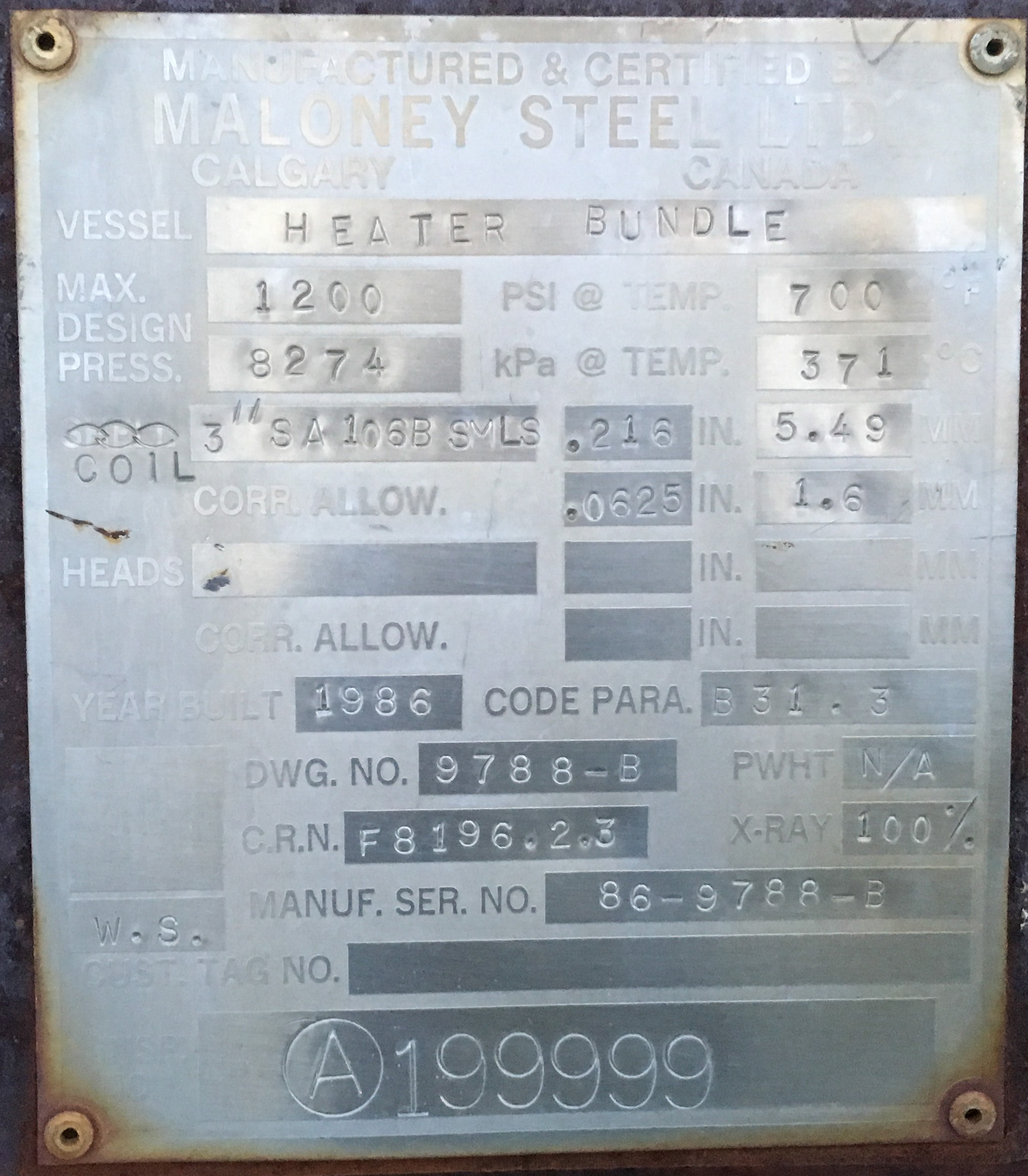

Key specifications
- BTU Rating
- 3BTU/hr
- Coil Size
- 3" SA106B SMLS
- CRN
- F8196.2.3
- Firetube Dimensions
- 24" x 23'
- Flame Arrestor
- true
- Max Design Pressure
- 1200PSIG
- Max Design Temperature
- 700°F
- Vessel Diameter
- 60in
- Vessel Length
- 23ft
- X-Ray Inspection
- 100%
Supporting evidence
No supporting documents or certifications provided.
Description

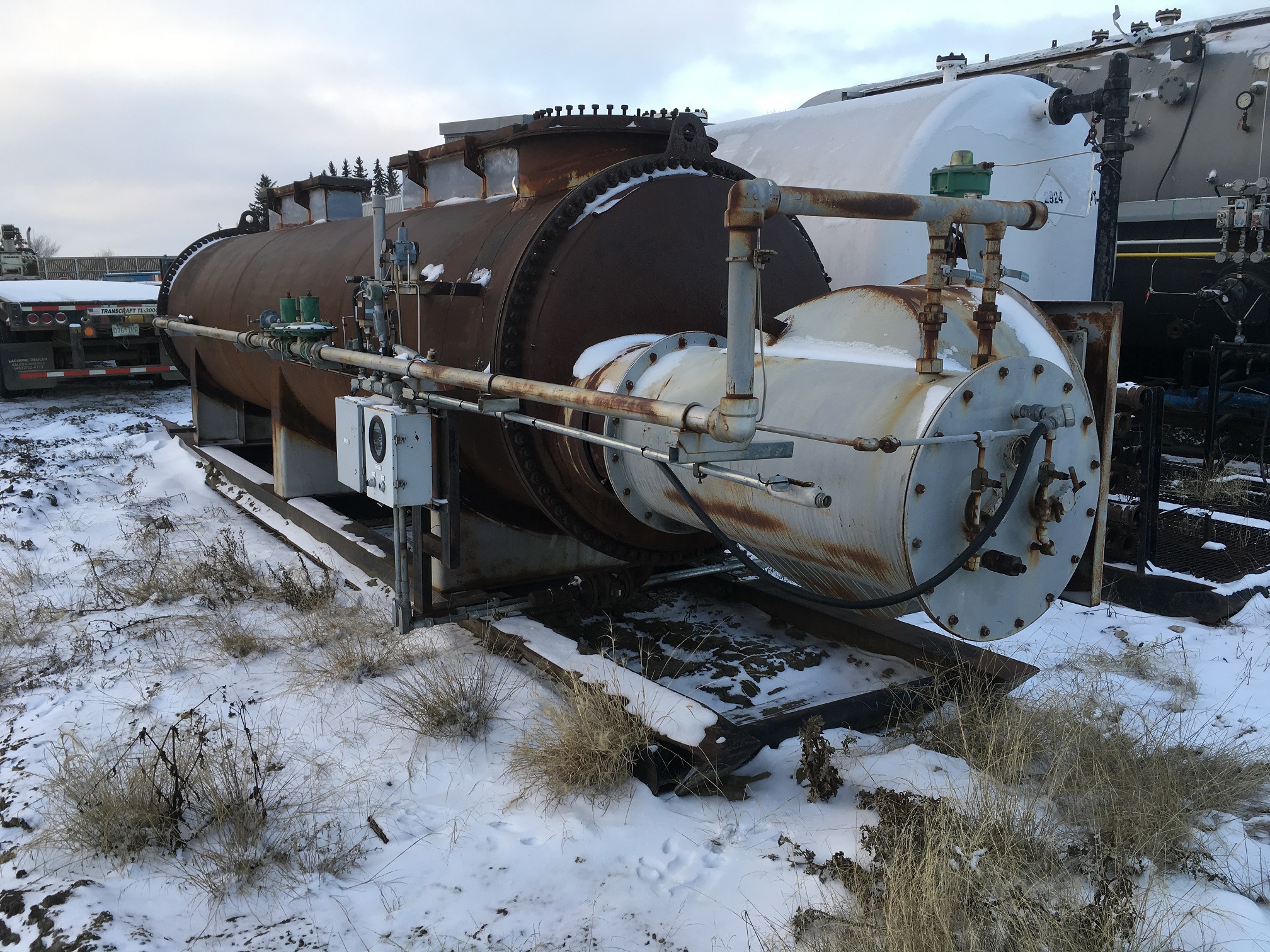

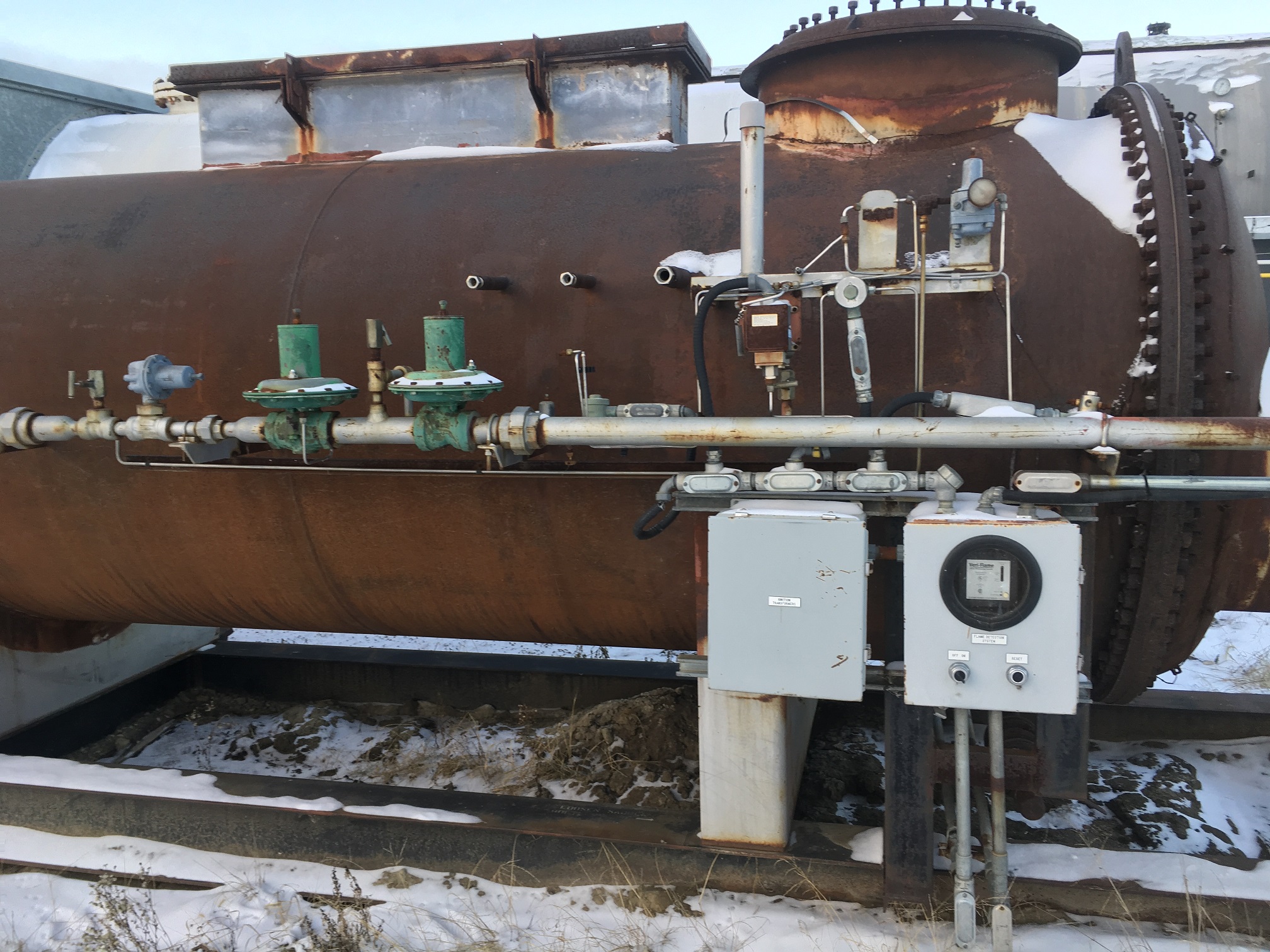

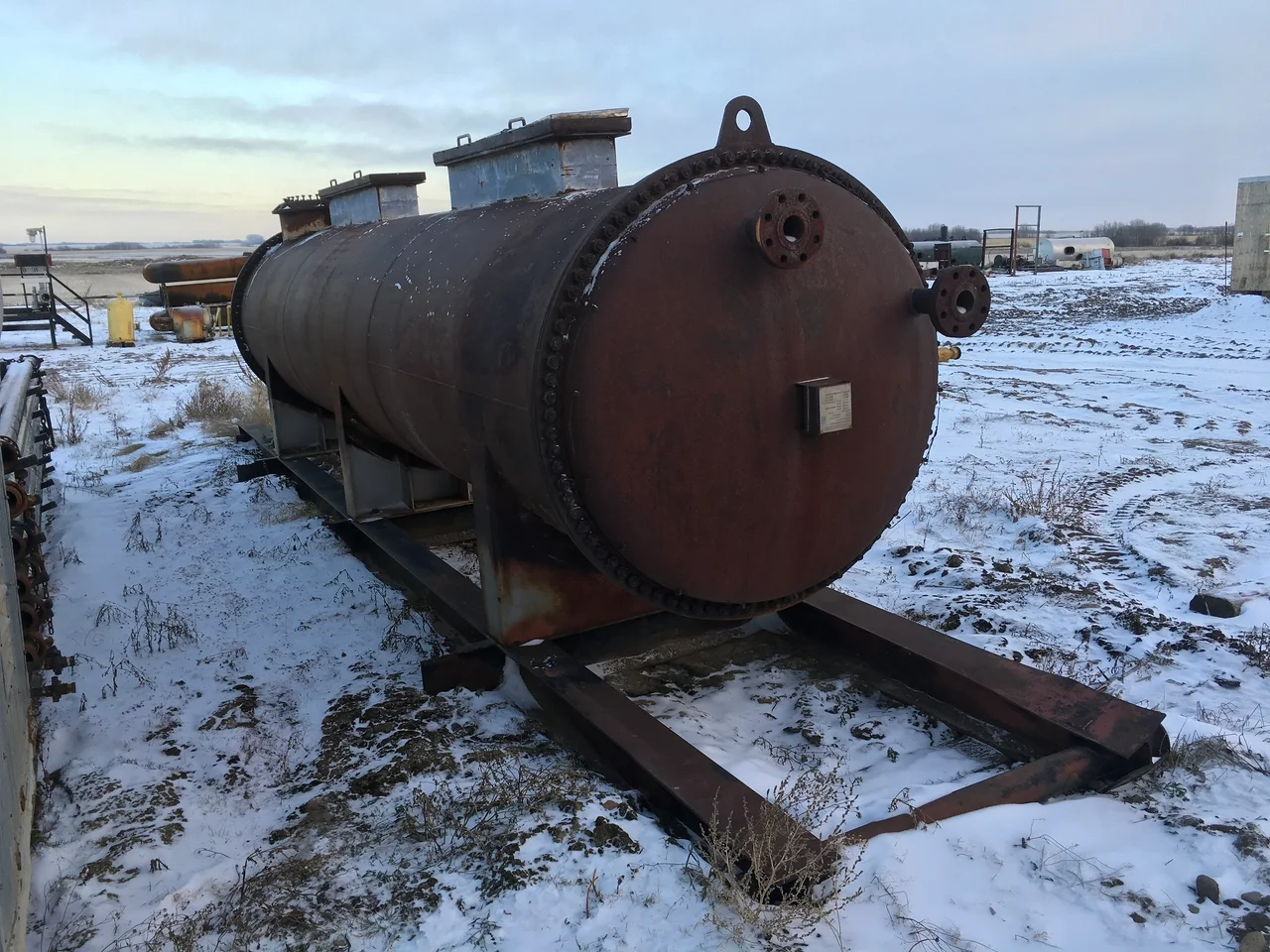

The Maloney Steel 3.0 MMBTU Salt Bath Heater is a robust indirect heating system designed for oil and gas applications, particularly in cold climates for heating process fluids like natural gas, crude oil, or emulsions without direct flame contact. Manufactured in 1986 by Maloney Steel Ltd. in Calgary, Canada, this unit utilizes a molten salt bath to transfer heat efficiently, reducing the risk of coking or degradation in high-viscosity fluids. Key features include a 24" x 23' firetube, flame arrestor, and skid-mounted base for easy transport and installation. It offers advantages over direct-fired heaters by providing uniform heating, lower maintenance due to corrosion-resistant materials (e.g., SA106B seamless coil), and compliance with ASME B31.3 codes. Benefits include high thermal efficiency and safety in hazardous environments, though drawbacks may involve higher initial costs and the need for salt replenishment. Ideal for wellhead, pipeline, or refinery operations, this used unit shows signs of rust and weathering from outdoor storage but remains structurally sound with 100% X-ray inspected welds. Estimated weight and dimensions are based on visual analysis and similar models; exact values may vary. For detailed specs, refer to manufacturer datasheets or CRN documentation.
