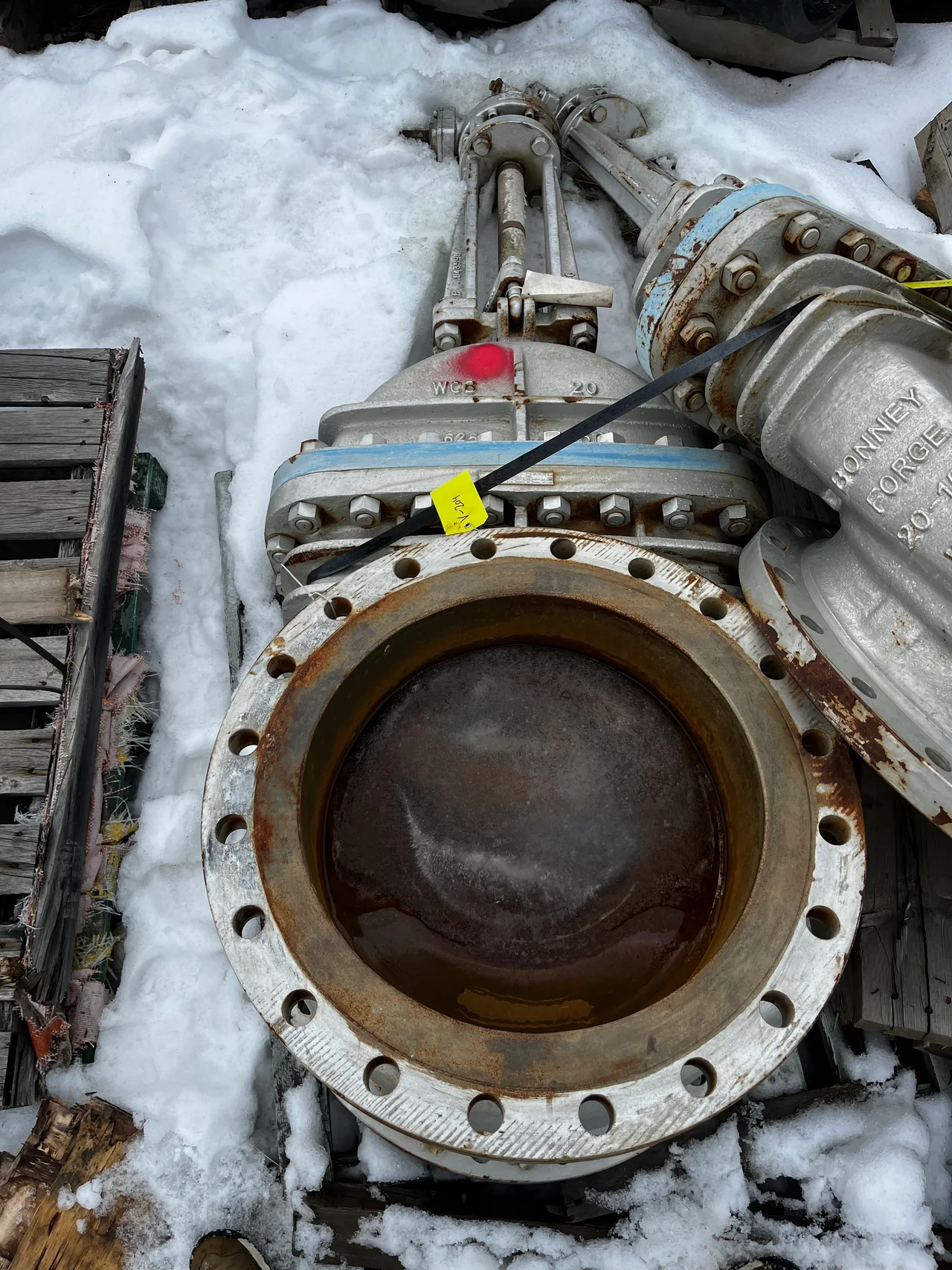

Bonney Forge Class 150 20-Inch Gate Valve FIG. 1-1-REF-LE-1
Bonney ForgeModel:1-1-REF-LE-1
Red Deer, AB
Gate Valve
Qty:1
Condition: New
At a glance
- Product
- Bonney Forge Class 150 20-Inch Gate Valve FIG. 1-1-REF-LE-1
- Manufacturer
- Bonney Forge
- Model
- 1-1-REF-LE-1
- Category
- Gate Valve
- Condition
- NEW
- Availability
- In stock
- Price or process
- Make an offer
- Quantity
- 1
- Lead time
- Not provided
- Location
- Red Deer, AB
- Fulfillment
- Pickup and shipping available
- Seller
- OTG
- Listed on
Key specifications
- Body Material
- WCB Carbon Steel
- Disc Material
- CR13
- End Connection
- Raised Face Flanged
- Maximum Allowable Working Pressure
- 285psi
- Nominal Size
- 20in
- Pressure Class
- 150
- Seat Material
- HF (Hard Faced)
- Standards Compliance
- ASME B16.34, API 600
- Temperature Max
- 1000°F
- Temperature Min
- -20°F
Supporting evidence
- Document: Bonney Forge Class 150 20-Inch Gate Valve FIG. 1-1-REF-LE-1 document 727d183c-f812-4a21-ab81-d67fc1eb217d
Document for Bonney Forge Class 150 20-Inch Gate Valve FIG. 1-1-REF-LE-1
- Document: Bonney Forge Class 150 20-Inch Gate Valve FIG. 1-1-REF-LE-1 document acdb38ca-eee0-4dce-b06a-0c048682c6a9
Document for Bonney Forge Class 150 20-Inch Gate Valve FIG. 1-1-REF-LE-1
Description
The Bonney Forge Class 150 20-Inch Gate Valve, model FIG. 1-1-REF-LE-1, is a robust, cast steel gate valve designed for reliable shut-off in high-flow industrial applications such as oil and gas pipelines, water treatment, and petrochemical processing. Constructed from WCB carbon steel with a CR13 disc and HF seat, it offers excellent durability and corrosion resistance in moderate environments. Key features include flanged ends for easy installation, a rising stem for visual position indication, and compliance with ASME B16.34 standards for pressure and temperature ratings. Advantages over similar products include Bonney Forge's reputation for forged quality components, reducing leakage risks and extending service life. However, its large size and weight can make handling challenging, and it may require regular maintenance in corrosive settings. Drawbacks include higher initial cost compared to lighter-duty valves and potential for stem packing wear over time. Ideal for on/off service in non-throttling applications, it provides low pressure drop when fully open and tight sealing when closed.
