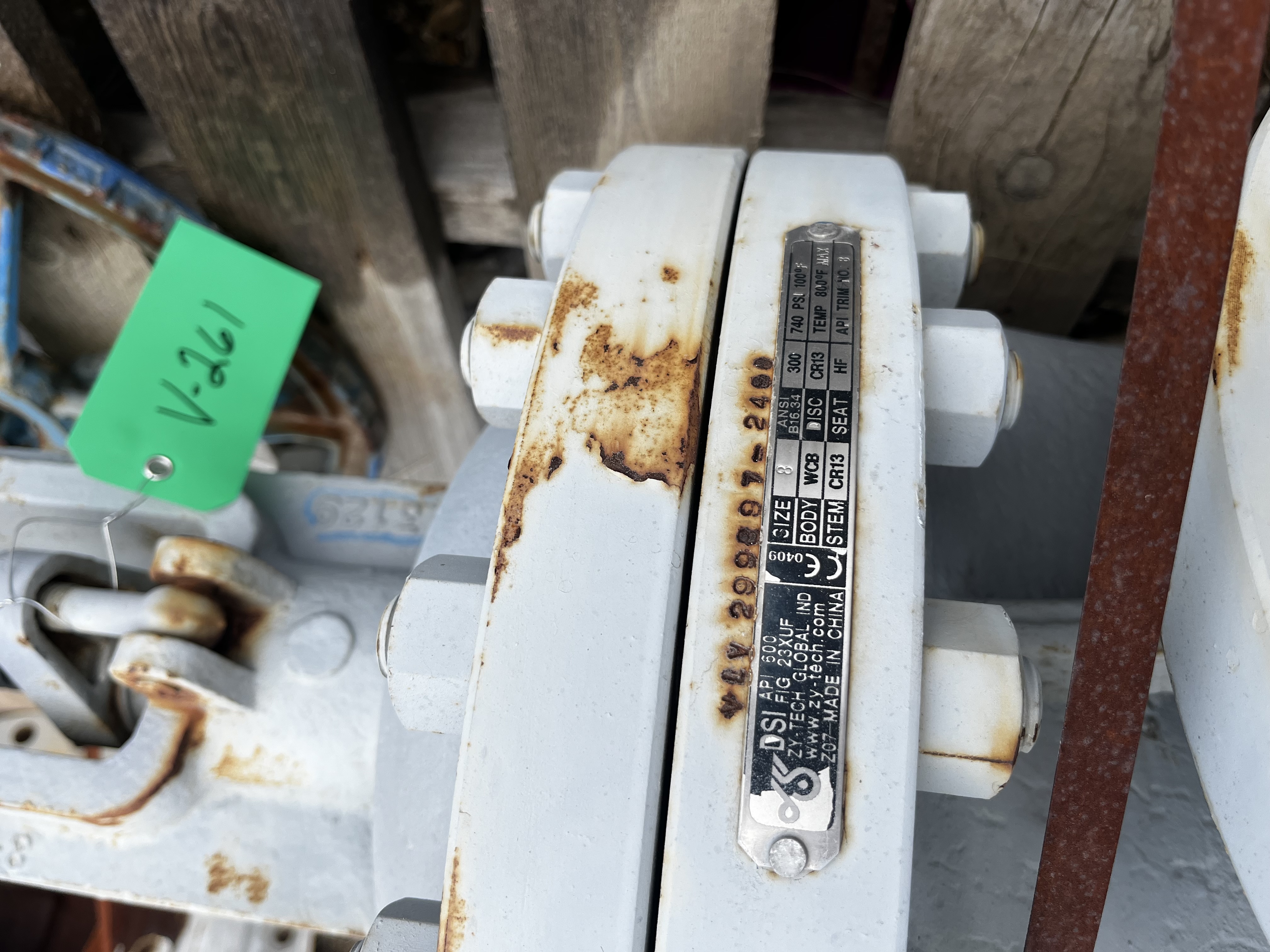

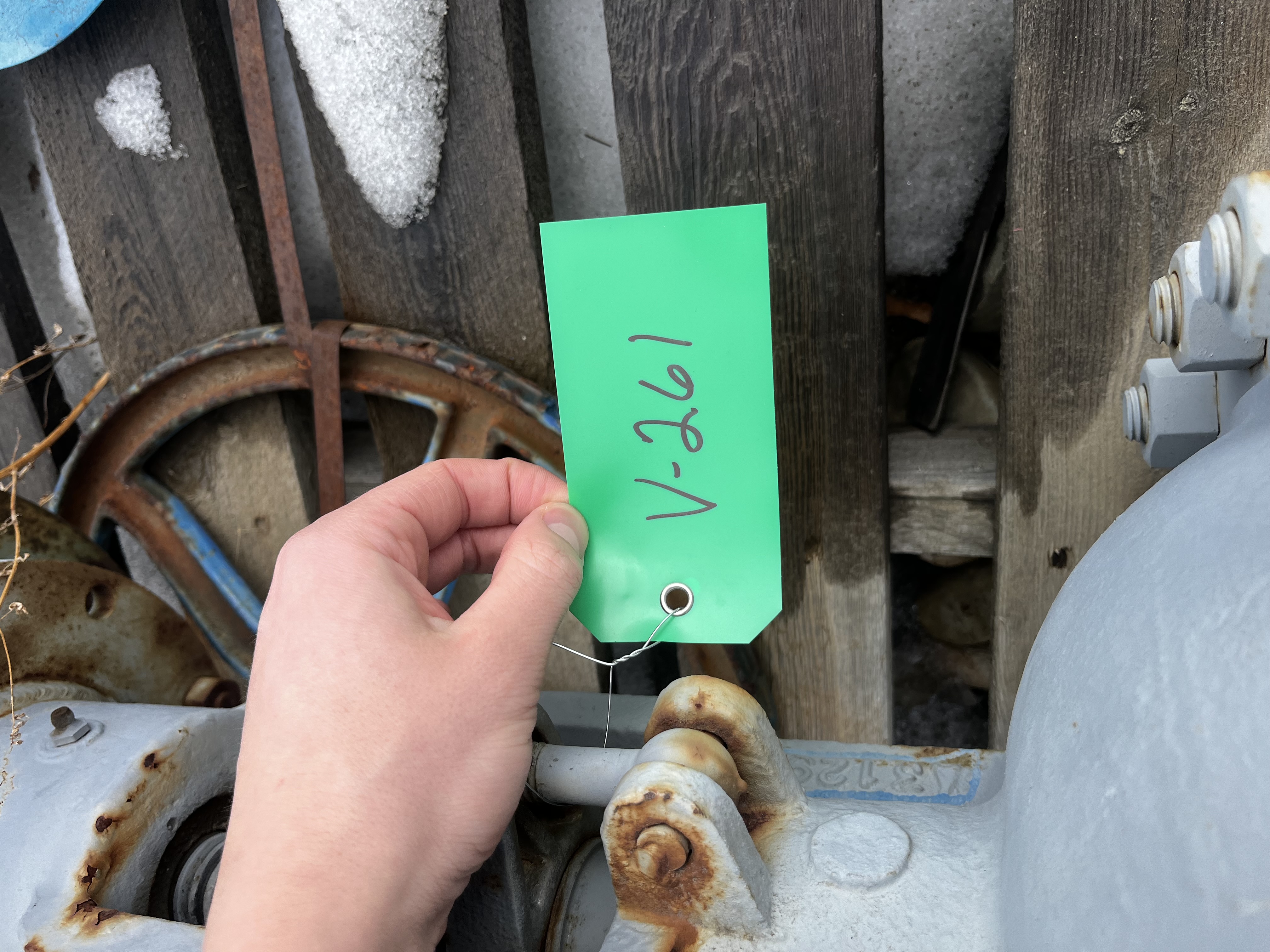

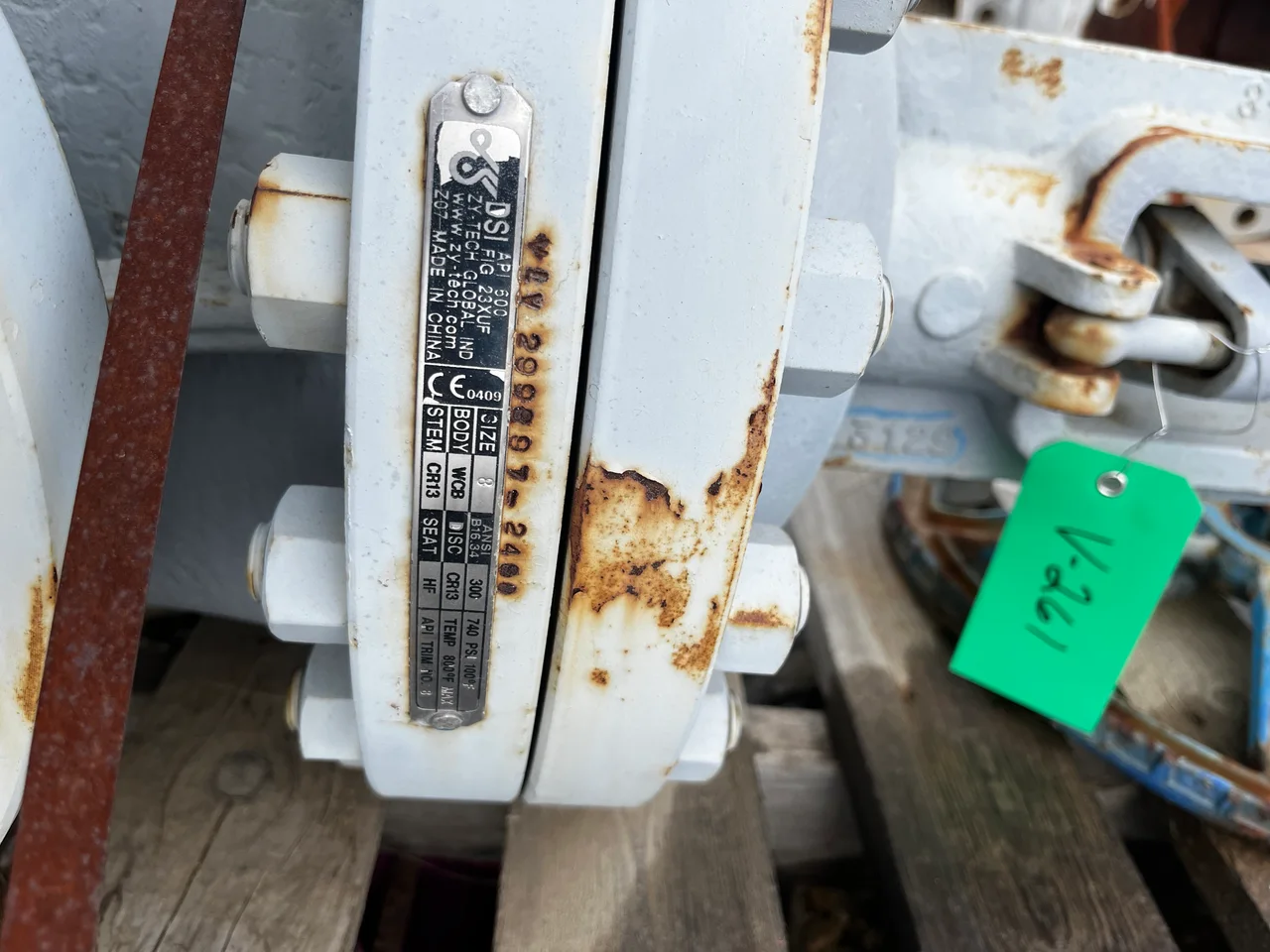

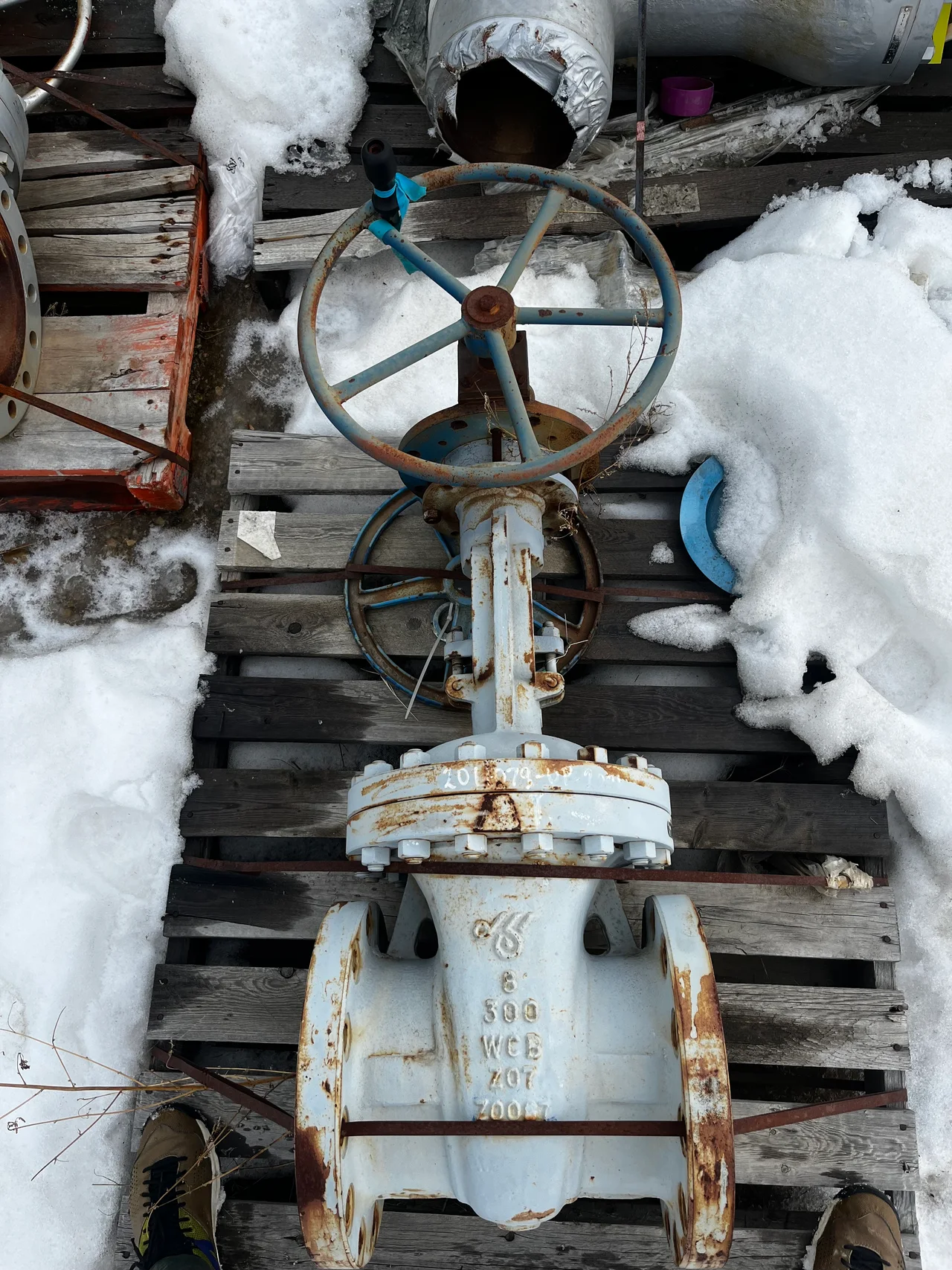

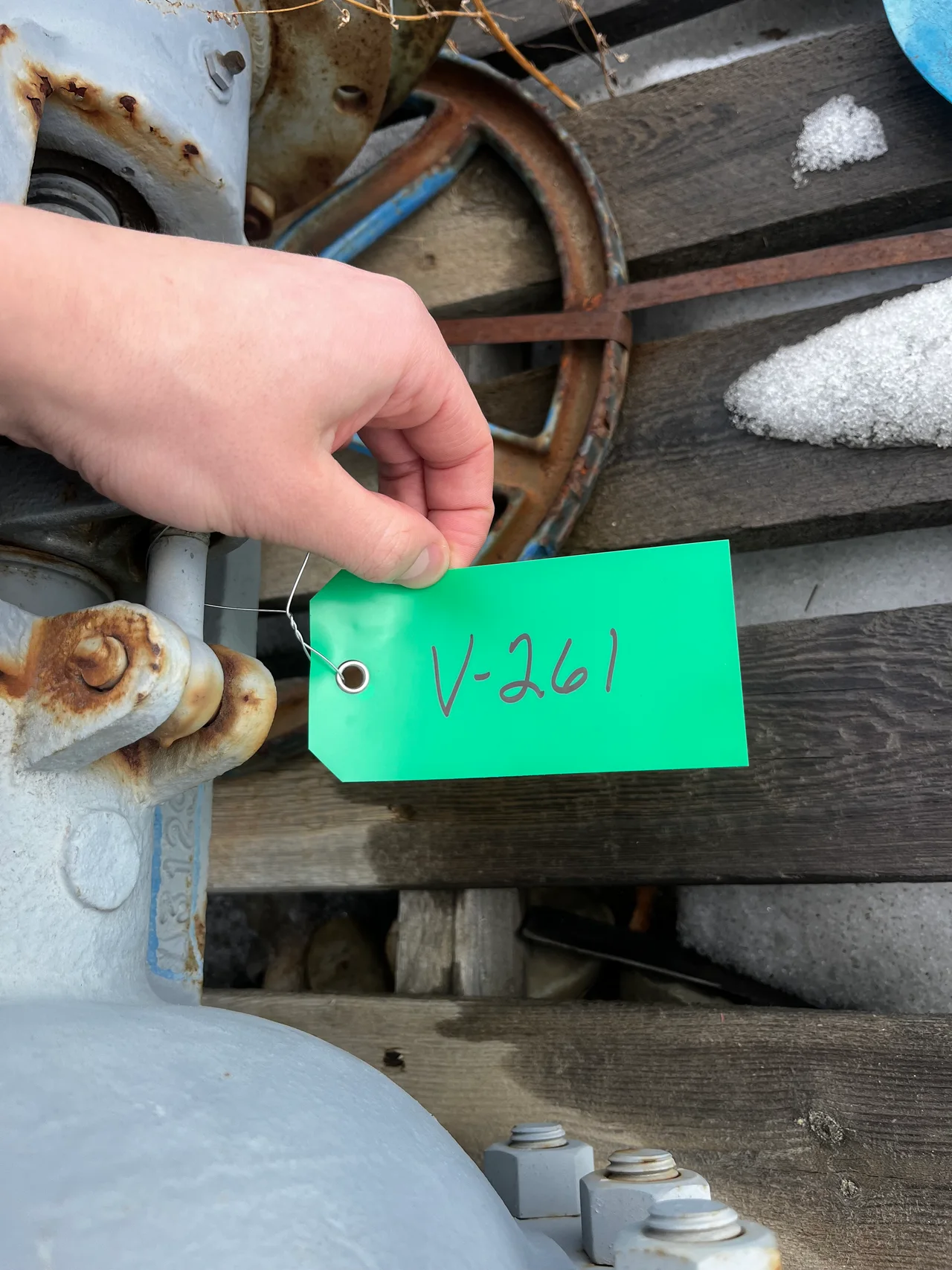

DSI API 600 Class 300 Gate Valve 6x4 Inch FIG 1600XUF
DSI ValvesModel:1600XUF
Red Deer, AB
Gate Valve
Qty:1
Condition: New
At a glance
- Product
- DSI API 600 Class 300 Gate Valve 6x4 Inch FIG 1600XUF
- Manufacturer
- DSI Valves
- Model
- 1600XUF
- Category
- Gate Valve
- Condition
- NEW
- Availability
- In stock
- Price or process
- Make an offer
- Quantity
- 1
- Lead time
- Not provided
- Location
- Red Deer, AB
- Fulfillment
- Pickup and shipping available
- Seller
- OTG
- Listed on
Key specifications
- Body Material
- WCB (Cast Carbon Steel)
- Design Standard
- API 600
- Disc Material
- 316L Stainless Steel
- End Connection Type
- Raised Face Flanged
- Maximum Allowable Working Pressure
- 740psi
- Nominal Size
- 6x4 inchin
- Pressure Class
- 300
- Seat Material
- HF (Hard Faced)
- SKU
- V-261
- Stem Material
- CR13 (Chrome Steel)
- Temperature Max
- 800°F
- Temperature Min
- -20°F
- Trim
- API Trim #3
Supporting evidence
No supporting documents or certifications provided.
Description
The DSI API 600 Class 300 Gate Valve, model FIG 1600XUF, is a robust cast steel gate valve designed for high-pressure industrial applications in oil, gas, petrochemical, and power generation sectors. Featuring a flexible wedge disc and outside screw and yoke (OS&Y) design, it ensures reliable shut-off and minimal leakage under demanding conditions. The valve has a reduced port configuration (6x4 inch), which offers cost savings and reduced weight compared to full-port alternatives while maintaining strong flow characteristics. Key benefits include excellent durability in corrosive environments due to its WCB carbon steel body, 316L stainless steel disc, and hard-faced (HF) seats, providing superior resistance to wear and erosion. It operates effectively across a wide temperature range of -20°F to 800°F and handles pressures up to 740 PSI at 100°F. Advantages over similar products include compliance with API 600 standards for quality and safety, easy maintenance with rising stem, and bolted bonnet for secure sealing. Drawbacks may include higher initial cost and the need for periodic lubrication in harsh environments.
